COLO-1818 Electric Powder Coat Paint Oven (1.8*1.8*1.8m)
Email: services@colourspray.com
Whatsapp: 8618958052290

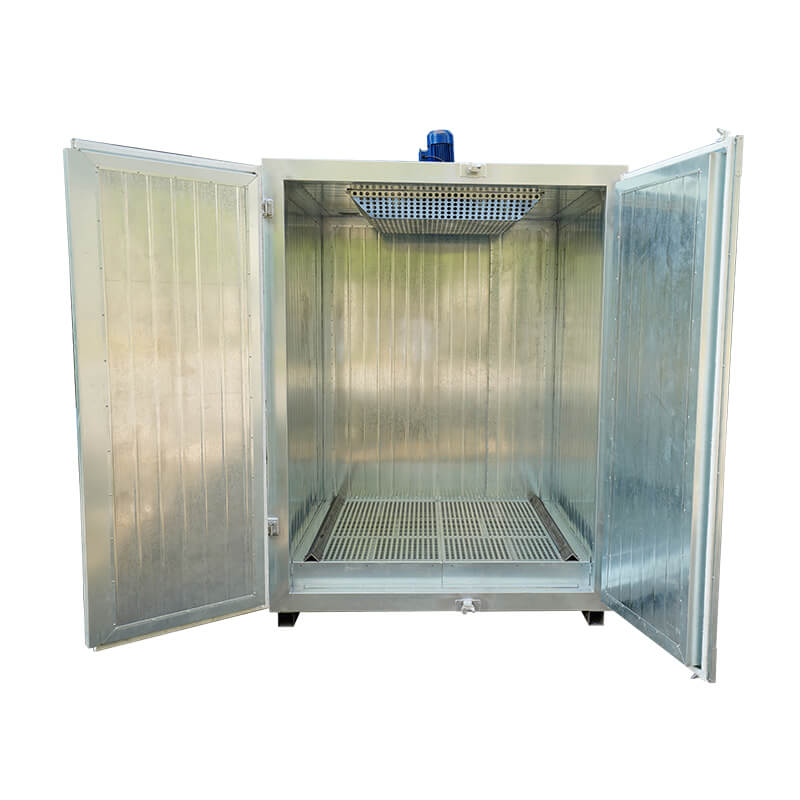

COLO-1818 Electric Powder Coat Paint Oven
Our electric curing ovens are designed specially for powder paint, no pollution for parts and environment. The model COLO-1818 powder oven has sufficient space to heat batches of pained objects. It offers excellent temperature uniformity that provides you consistent, high-quality curing results.
COLO Powder Coat Paint Ovens Features
Rock Wool Insulation Board 100mm The paint curing oven utilizes a sandwich panel design. Rockwool insulation of at least 100mm is inserted between galvanized inner wall and color-steel external skins, effectively minimums temperature dropping.
Easy & Accurate PLC Control
PLC Control provides high precision heating process, it offers all the features you need. The panel allows you to set the accurate temperature and duration you require, as well as control the working of fan.
Parts Transporting Sysem

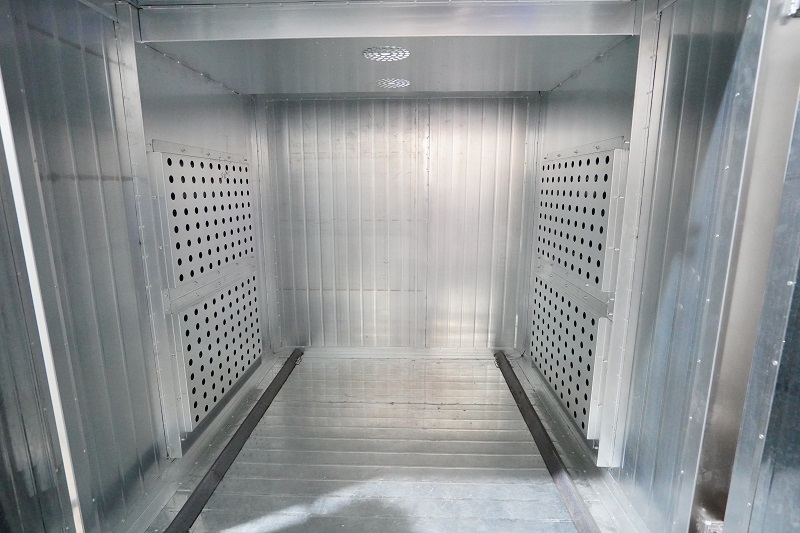

COLO powder paint ovens are equipped with 2 trolleys, internal and external trolleys. which reduce efforts to transport heavy elements. The internal trolley loaded with parts always moves accross the hall that will not pollutes the oven chamber, thus keeps the purity of cured parts.
Circulation Fan
We can boast a very good temperature uniformity result thanks to the circulation fan, our research has shown that the uniformity of air temperature in the furnace of our circuit does not exceed ±3°C! The fan for small powder coating ovens can be installed on the top to save space.
COLO-1818 Electric Powder Coat Paint Oven Specifications
| Model | COLO-1818 |
| Inner chamber size: | width1800 x depth1800 x height1800 (mm) |
| Voltage: | 220/110V 50/60hz |
| Frequency | 50-60Hz |
| Power supply: | electricity |
| Motor power: | 0.75kw |
| Heating time: | 25-30 minutes(180°C) |
| Max. Temperature | 250 °C |
| Temperature stability: | < ± 3-5°C |
| Transportation | Trolley |
Standard Models of COLO Electric Powder Coat Paint Ovens
| Model | Working Dimension(mm) | Heating Power | Fan Motor Power |
| COLO-1515 |
Width1500 Heght*1500 Depth1500 (4.9' x 4.9' x4.9') |
18kw | 0.75kw, 1pcs |
| COLO-1864 |
Width1600 Heght1800 Depth1400 (5.2' x 4.6' x5.9') |
18kw | 0.75kw, 1pcs |
| COLO-1732 |
Width1650 Heght1700 Depth3200 (5.4' x 5.5' x10.5') |
45kw | 1.5kw, 1pcs |
| COLO-1645 |
Width1500 Heght1650 Depth4500 (4.9' x 5.4' x14.7') |
54kw | 3kw, 1pcs |
Why choose COLO powder coating ovens?
We have over 15 years' experience in the design, manufacture, installation, commissioning and ongoing support of the powder coating ovens for industrial use. Our powder coating curing ovens range can be supplied from existing standard sizes or produced to your precise requirements, ranging from electric powder coating ovens, gas/diesel/LPG powder coating, batch or conveyorised ovens. etc. All our curing ovens are built in house from material preparing to electric connection, thus we make them budget-friendly and quality-assured.
