Description

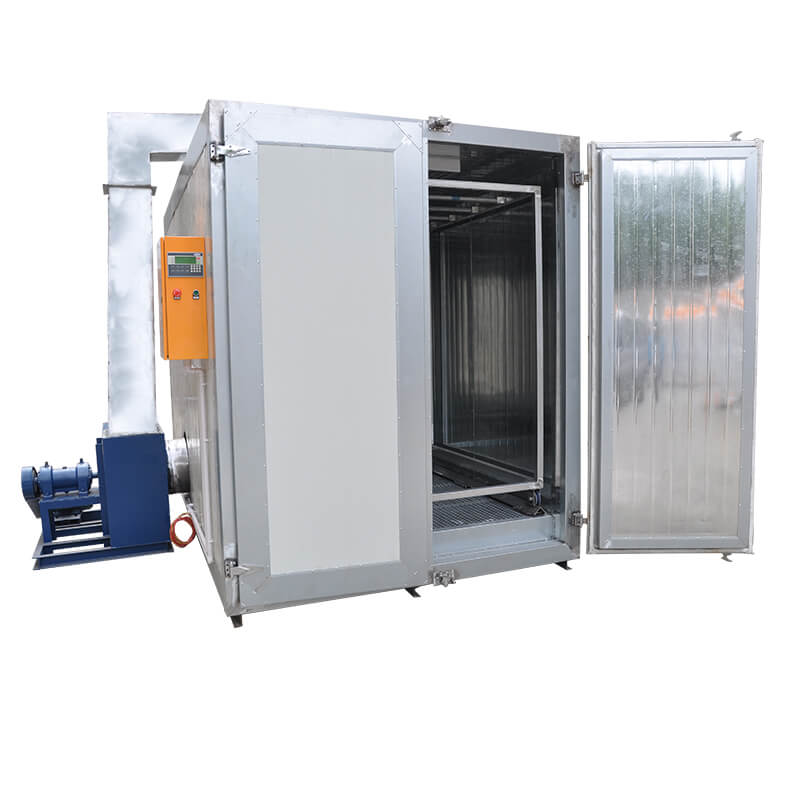

COLO-1645 Big Electric Powder Coating Oven

The 4.5 meter length curing oven is designed for drying big bulky parts or a batch production of small-sized parts after powder coating process. Electric heating style reduces the task of operation and maintenance, no pollution for parts and environment.

COLO Electric Powder Coating Ovens Features

Rock Wool Insulation Board 100mm
The powder coating oven insulation material is 100mm thickness rock wool board, which always maintain the warmness in the oven chamber. The inner wall is 1mm galvanized steel which is heat-resistant, while the outerwall is durable color steel sheet.

Automatic control-simple PLC system

PLC Control provides high precision heating process, it offers all the features you need. The panel allows you to set the accurate temperature and duration you require, as well as control the working of fan.

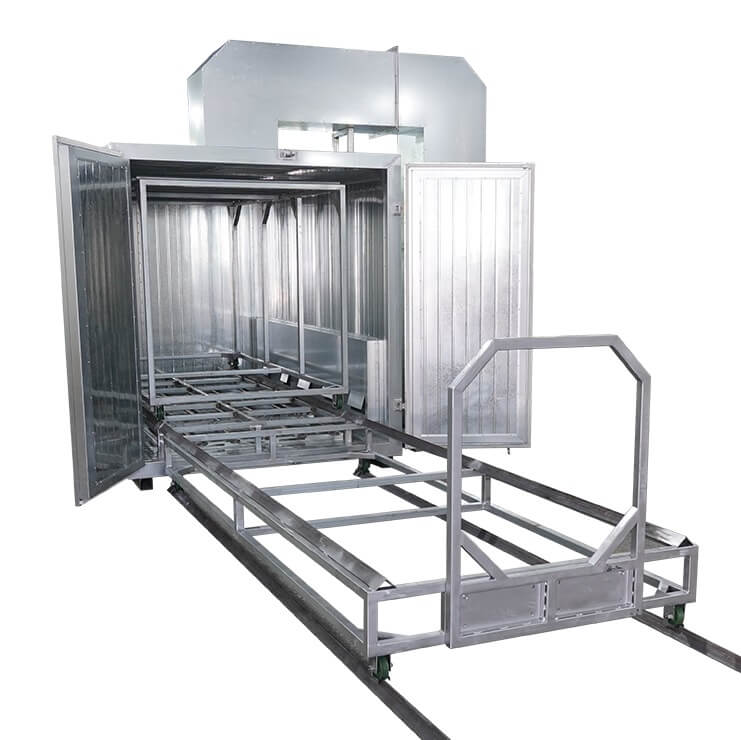

Parts Transporting Sysem

COLO powder coating ovens are equipped with 2 trolleys. with inside and outside sets. It is easy for loading and transporting workparts. The inner trolley holding parts always stays clean that will not pollute the oven chamber, keeping the purity of cured parts.

Circulation Fan

We can boast a very good temperature uniformity result due to the circulation fan. Our research has shown the temperature stability does not exceed ±5°C. The optimal airflow throughout the powder coating oven enclosure creates an even, constant cure for your parts..

COLO-1645 Electric Powder Coating Oven Specifications

Model	COLO-1645
Inner chamber size:	width1500mm x depth4500mm x height1650mm
Outer size:	width1800mm x depth4800mm x height2050mm
Voltage:	220/380V/415V (custom available)
Frequency	50-60Hz
Power supply:	electricity
Motor power:	3 kw
Heating time:	25-30 minutes(180°C)
Max. Temperature	250 °C
Temperature stability:	< ± 3-5°C
Transportation	Trolley

Why choose COLO powder coating ovens?

We have over 15 years' experience in the design, manufacture, installation, commissioning and ongoing support of the powder coating ovens for industrial use. Our powder coating curing ovens range can be supplied from existing standard sizes or produced to your precise requirements, ranging from electric powder coating ovens, gas/diesel/LPG powder coating, batch or conveyorised ovens. etc. All our curing ovens are built in house from material preparing to welding, assembling to electric connection, thus we make them budget-friendly and quality-assured.
