Automatic Powder Coating Booth System for Aluminium Profiles
Email: services@colourspray.com
Whatsapp: 8618958052290

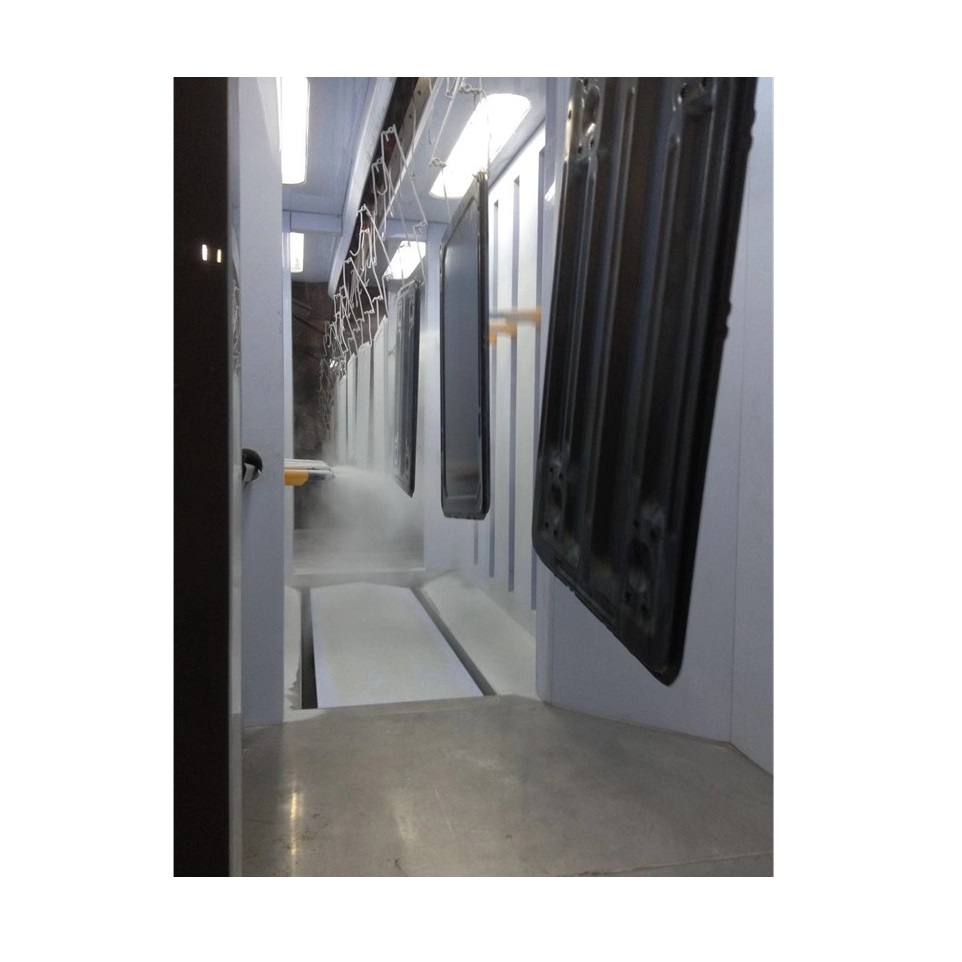

Automatic Powder Coating Booth System for Aluminium Profiles
This is an economical and efficient booth system solution in automatic powder coating line, ideal for aluminium profiles, frames, plates applocations. Along with the job of automatic reciprocator and spray guns, the powder booth system achieve effective coating, and high powder recovery rate. The top tunnel will be constructed with overhead conveying system that transports workparts.
COLO-0825 Automatic Powder Coating Booth
| Model | COLO-S-0825 |
| Booth Type | Automatic Tunnel Type |
| Operator dimensions | Width800 x Depth4000 xHeight2000 mm |
| Overall dimensions | Width1200 x Depth2580 xHeight5000 mm |
| Weight | 150kg |
| Power supply | Electric |
| Fan Motor | 2 sets, 5.5kw/set |
| Voltage | 380V/220V. customized as local. |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filters count | 12pcs (325*900) |
| Filters hang type | Rotary Wing, help filter cleaning |
| Filter cleaning system | Pneumatic |
| Warranty | 12 months |
100% Polyester filtersSize: D325xH900mm per piece. Colo's powder booths uses only the highest quality filters made from 100% polyester, whose filtration less than 0.1 micrometer, well separates the powder from the air. Each filter will get interval pulse-jet cleaning controlled by valves, which will extend its life.
FansIn Booths manufactured by Colo we use aluminium fans which are safe, doesn't cause sparks when rubbing by metal elements which in case of using metal fan can cause explode.And they are very quiet, work at the level of 74-79dB. Fan is installed at the top of filter room that saves factory space
PLC Control unitColo’s control unit have many program. Different bottom correspondence different function. Control the fan on/off, adjust time range of the pulse to cleaning filters, make the recovery powder hopper up and down.
Powder CollectorThere is a powder recovery hopper beneath the booth that collects oversprayed powders, equipped with 2pcs of powder recovery pump that automatically transfer the powders to the powder feed center for re-utilization.
Automatic Powder Coating Guns & Equipment
Powder Coating Reciprocator
1) Smooth and gentle movement through belt increases uniformity of powder coating flim thickness.
2) Jitter-free operation causes lower noise and less wear-resistance.3) Can carry up to 24 pcs powder spray guns for reliable and stable running.
4) Allows create and store 20 kinds of pre-programmable settings for automatic selection of stroke and speed.
5) User-friendly PLC system with touch screen controls speed and stroke length accurately.
Central Control Cabinet1) A central control cabinet combines a certain quantity of automatic powder gun controllers for integrated operation.
2) meet the requirements of serial production in powder coating line, ensures reliability and controllability.
3) All units are integrated to be controlled in one master controller, which is easy to train and operation.4) The quantity of the powder coating units installed in the cabinet can be custom based on the actual applications.
COLO-191S Intelligent Gun Control1) 0-100kv voltage adjustable, suitable for any shape of parts, perfect for challenging areas.
2) Flexibly adjust kv, amperage, automizing air, feeding air by buttons, values showed in LCD digital display.
3) Three pre-set coating modes support for panels, corners and re-coating, as well as allows to store 20 personalized programs.
4) Basic, startup automation tools for industrial powder coating set up, reaches new lever of productivity.
Automatic Spray Gun1) The 100kv spray gun maximizes transfer efficiency that creates perfect finish with high powder utilization.
2) We have the nozzle configurations you need for every parts shape with complete, uniform spray coverage, including round nozzles with different diameter deflectors, flat spray nozze and extension nozzle.
3) Superior Faraday-cage penetration and recoating capability to adapt a wide range of coating challenges.
Automatic Powder Coating Aluminium Profiles Application
