Semi Automatic Powder Coating Line for Frames, Profiles
Email: services@colourspray.com
Whatsapp: 8618958052290

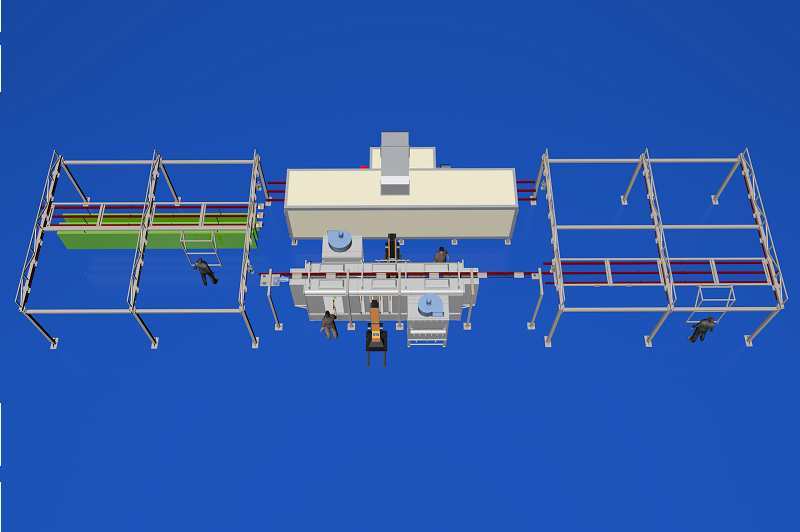

Semi-Automatic Powder Coating Line Design
The semi-automatic powder coating line is specially designed for long length workparts that requires high volume production using less manual efforts in limited factory space. It is ideal for powder coating aluminum profiles, metal frames, furniture, etc.
-副本.jpg?x-oss-process=image/resize,w_800/quality,q_100)
How semi-automatic powder coating line works?
1) Operator moves the loaded workparts with tracks into the station in front of the powder booth.
2) Manually moves the workparts towards to the powder booth overhead conveyor.
3) The workparts will be automatically transported once enter the conveyor
4) There are automatic reciprocating guns at both sides of the powder booth for efficient powder coating
5) After automatic powder coating, the workparts exit out automatically
6) Operator horizontally pulls the workparts to the station in front of the curing oven
7) Manually move the workparts in and out of curing oven.
Semi-Automatic Powder Coating Line Components

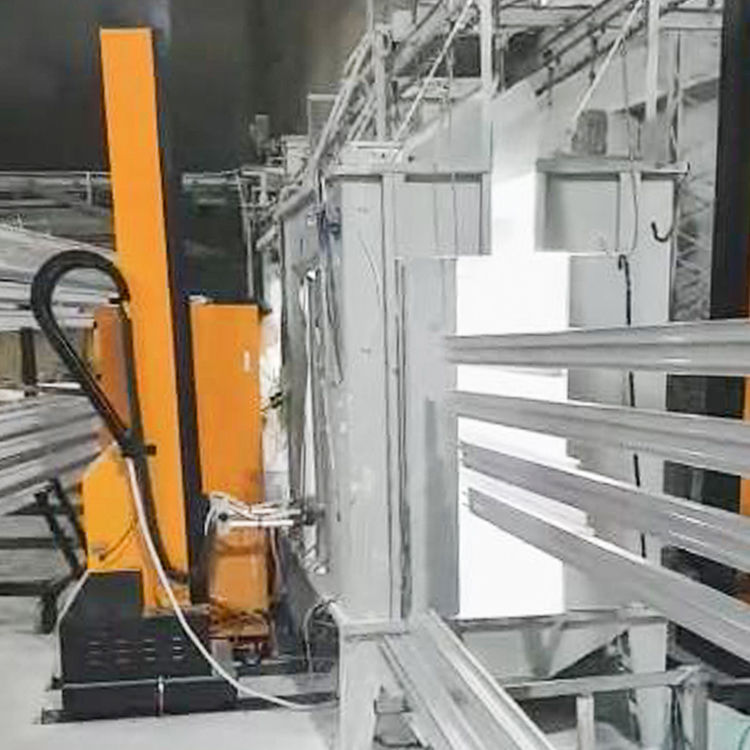

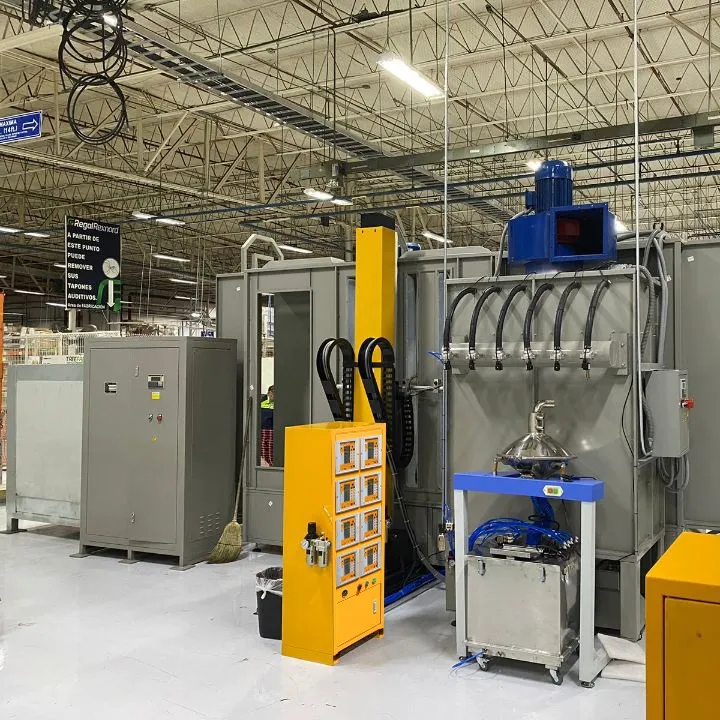

COLO-800D Automatic Powder Coating Equipment
1. It is the ideal entry into automatic series production offering quality finishes and great powder savings.
2. Multi controllers of automatic powder coating gun installed on a central cabinet, with compact design and simple operation.
3. The cabinet can be tailored to customer's demands, allows to install Max. 24 control units.
4. COLO-800D automatic powder coating machine is one of the most suitable solution for coating line, effective, relible, cost-saving.
5. The reciprocator driven by frequency motor, speed and stroke adjustable. The sturdy construction could adapt to continual load everyday.

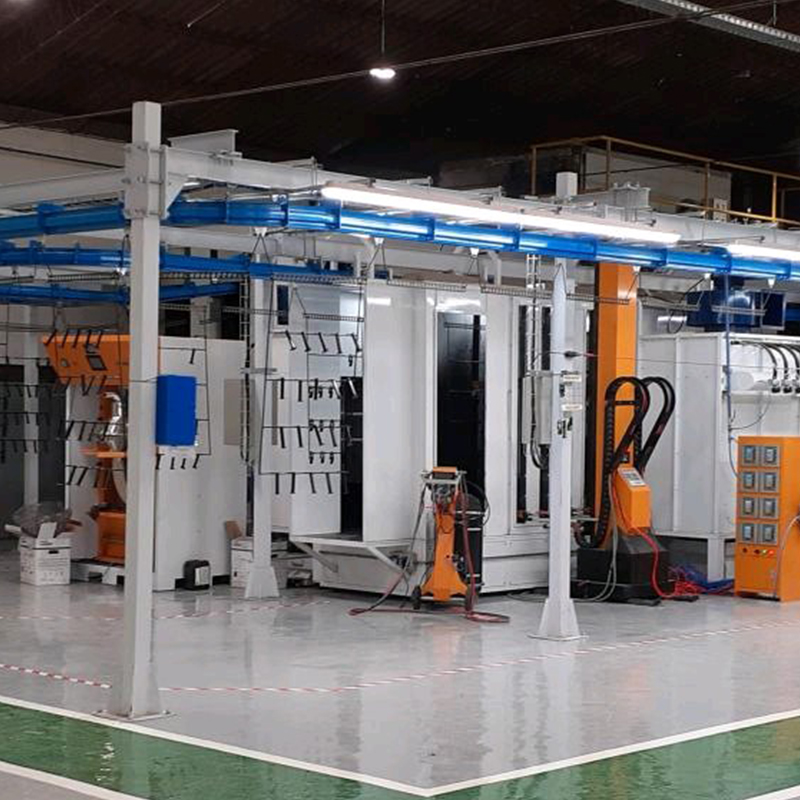

COLO Conveyor Powder Coating Booth
1. Dual station automatic powder spray booth, parts enter the booth through the overhead conveyor, then pass the working stations to receive the coating with both sides.
2. Powder reclaim is achieved by a recovery stage, which is combined with several pieces of high precision filters, reach 98% powder recycling rate.
3. Filter cleaning is automatically done through pulse solenoid valves, thus filter life is extended.
4. PLC provides all the functions you need, control the fan working, set interval and time of pulse jet for filter cleaning.

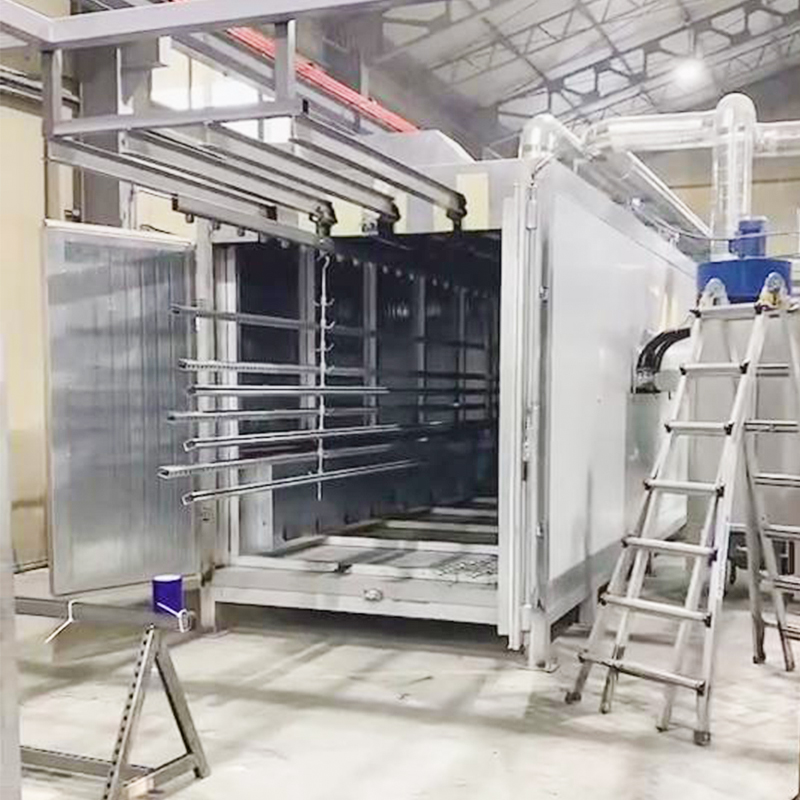

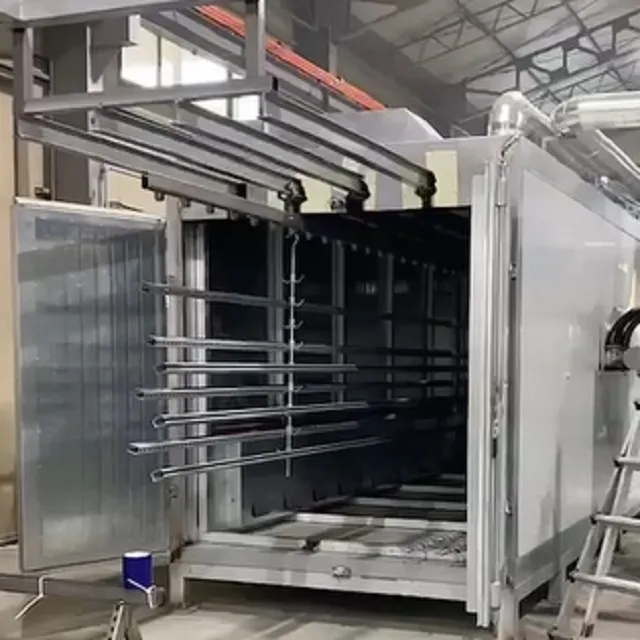

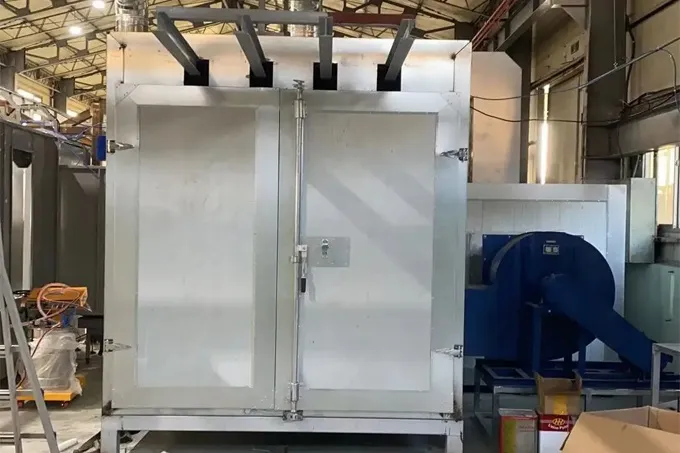

COLO Powder Coating Curing Oven
1. The powder coating oven can be designed for gas, diesel, electric heating as actual conditions, longer length we recommended gas/diesel curing oven, while gas heating is more clean and environmental.
2. High efficiency heating element enables rapidly raise to the required temperature, save your time every day.
3. A powerful circulation fan makes even temperature in inner chamber ensure high quality curing results.
4. Construced with 100mm thickness rock wool board, ensures minium temperature dropping.
5. PLC control system provides an easy and accurate heating process, digitally setting the heating time and temperature.
COLO Semi-automatic Powder Coating Line Benefits
1) Space-saving. Allows small workshop to build the aluminum profile (long workparts) powder coating project
2) Maximize production rate. The automatic powder coating system with a section of automatic conveyor greatly increase processing efficiency
3) Less labor cost. The horizontal pull track system, the automatic powder coating system with conveyor, minimize the manual efforts.
4) Cost-saving. the combination of manual and automatic operation system will costs less comparing with a fulll automatic coating line.
5) Custom Available. The professional and experienced team of COLO will custom booths, ovens and systems specially for your products!
