KF-X1 Box Feed Powder Coating System with Additional hoppers

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description

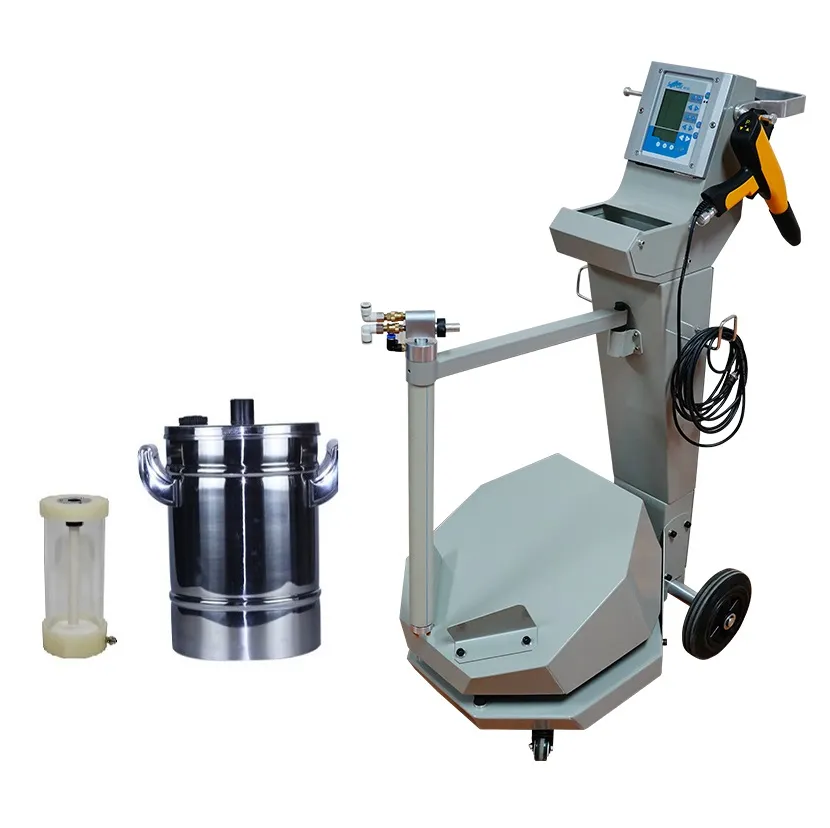

KF-X1 Box Feed Powder Coating System with Hoppers

KF-X1 series professional powder coating machine combines Digital Valve Control and 100kv High Voltage Static technologies, delivering excellent quality finish with highest transfer efficiency. A clear and easy to use interface makes it easy for every user to handle even most complex workparts.

  • powder coating systemBox Feed and Hopper Feed System in 1 Machine
  • powder coating gunWith a Special Fixture for the 2 pounds mini hopper

2 in 1 Powder Coating System

Box feed type powder coating system allows directly placing the original powder carton on a vibration table, changing color just changing a powder carton, fast and easy for multi0color application.

2 additional hoppers are provided for special needs, just switch on the controller with one-touch, you can use it as a hopper feeding powder coating system.

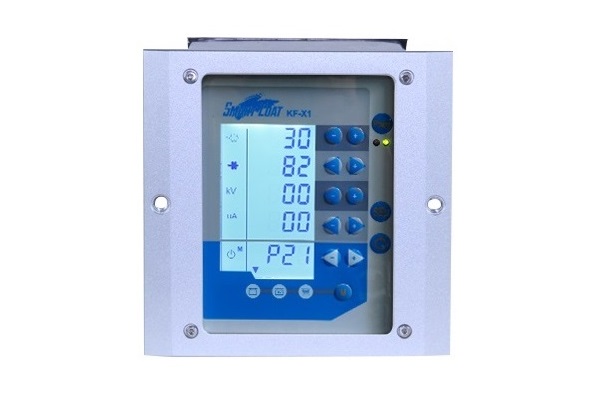

KF-X1 Powder Coating Machine Smart Controller

professional powder coating system

3. Digital valve controlled technology provides accurate regulation of powder feed and atomization, which delivers more constant and smooth powder flow, results in higher quality finish and a great saving of powders

4. Flexible control of kv, amperage by digital allows to get optimal coating mode that avoids Orange Peel or Faraday Cage Effect.

1. Offers 3 pre-set standard application programs for flat parts, corners and re-coating demands, ideal for beginners' use. Allows you to create and store 20 kinds of your own application programs optimized for your parts and powder.

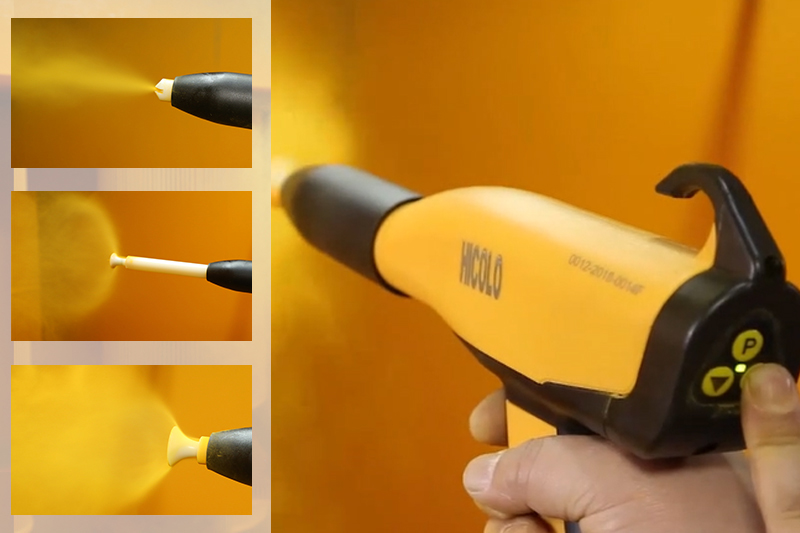

COLO-08 Electrostatic Spray Gun

powder spray gun

- 100 kV spray gun maximizes powder charging capacity while complying with safety regulations, delivers highest transfer efficiency during long lasting use, most powders are attracted to the metal parts with less waste.

- Program and powder flow changes are fast and easy too. Just press the “P” button to move between coating modes. and use the handy up and down arrows for adjusting powder flow as you coat.

- COLO light-weight manual electrostatic spray gun is ergonomically designed to reduce operators' fatigue after long time use.

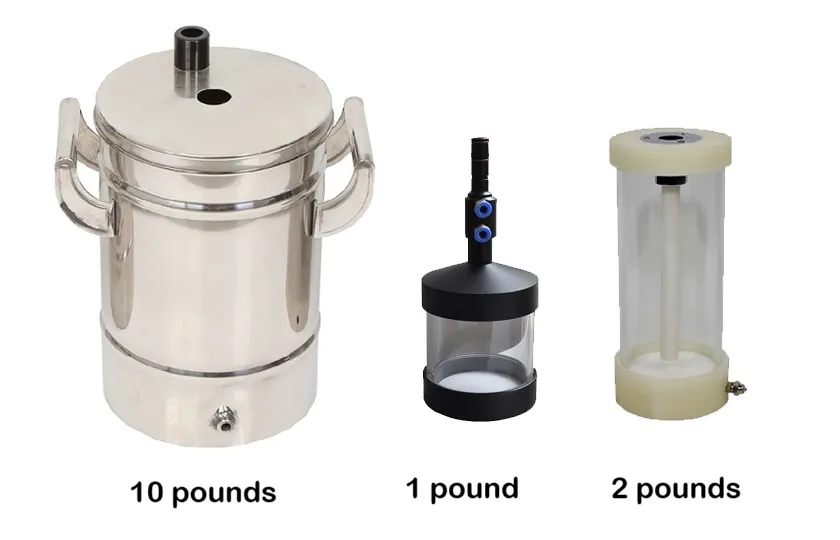

Three Hoppers for Different Coating Jobs

powder coating hopper

-The powder coating system can be worked with 3 different sizes of hoppers to handle any type of powder and any size job.

-The 10 pounds stainless steel hopper with size of D20xH30 is ideal for those larger jobs. If you want a big hopper, also available.

-The 1 pound (D10xH10) black cup is ideal for powder coating testing, easy for change color, does not need powder hose connecting.

-The 2 pounds (D10xH20) organic glass mini hopper is perfect for metallic’s and for quick jobs like a set of rims.



Why KF-X1 is a Professional Powder Coating System?

The initial feature is the precise adjustment of each parameters, as they are controlled by digital valves, especially for pneumatic parameters, you can always apply right amount of powders for workparts (traditional powder coating gun does not have), the second is the independent control of kv and amperage (most can only adjust kv), which help you overcome faraday cage effect. From flat panels to profiles or valve covers, the KF-X1 offers outstanding performance to every kinds of metal shapes.

Specifications

KF-X1 Powder Coating Gun Technical Parameter

Power range

100-240V

Frequency

50/60HZ

Temperature range in use

-10   +50

Gun weight:

500g

Rated output voltage

24VDC

Maximum output voltage

0-100KV (  adjustable)

Maximum powder injection

600g/min

Polarity

negative (-)

Maximum input-air pressure

10kg/cm

Optimum input-air pressure

6kg/cm

Maximum compressed-air consumption

13.2 m3/h
