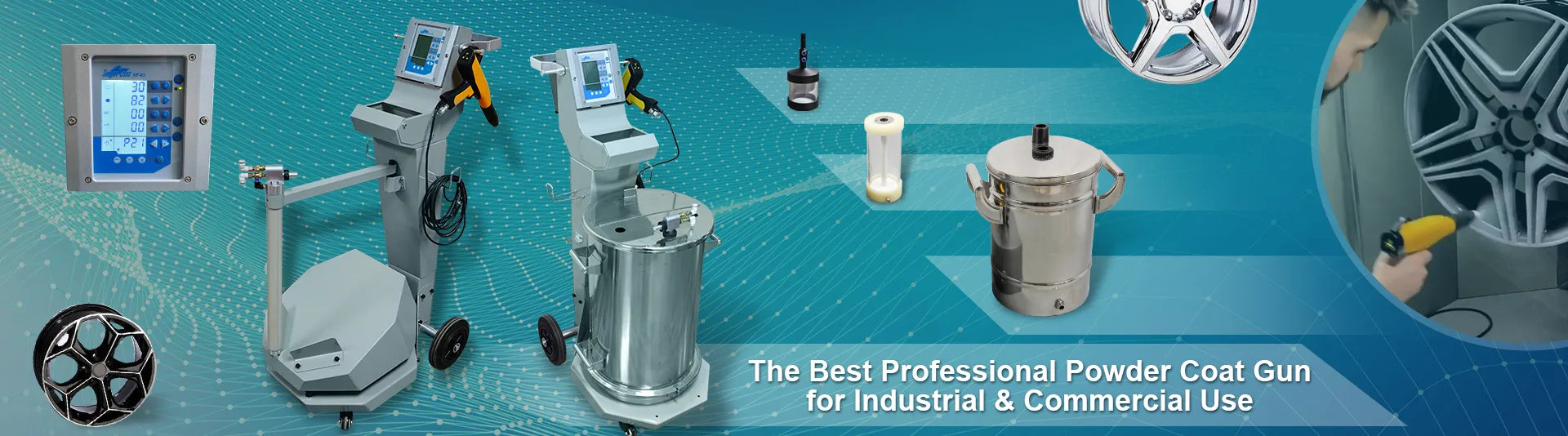

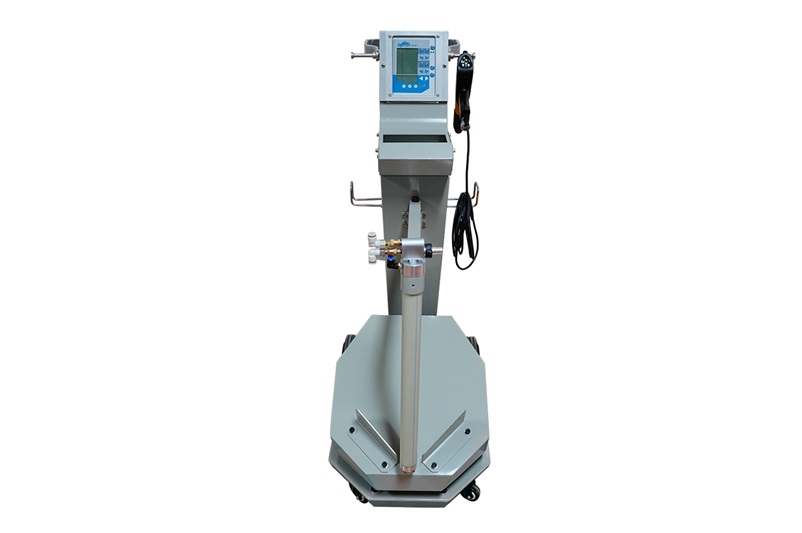

KF-X1 Professional Powder Coating System

KF-X1 series professional powder coating system combines Digital Valve Control and 100kv High Voltage Static technologies offering great flexibility to set accurate electric and pneumatic parameters that results in optimal effect. The proved high transfer effciency significantly saves your time and powder when coating with any shapes, any powders.

An inclined cart with vibration motor allows smooth powder conveying from original box, ideal for frequent color change application.

kf x1 powder coating system

This powder coating system is an extremely practical model for both beginners and experienced users, delivering excellent quality finish for all kinds of metal parts,  such as wheels, valves, engines, profiles, frames, cylinders, etc, especially easy to penetrate hard-to-reach corners.



KF-X1 Powder Coating System Smart Controller

professional powder coating system

- Allows easily, flexibly, precisly control vital parameters by digital, including kv, amperage, powder flow, atomization, fluidizing air, gun cleaning air.

-The unique accurate regulation of powder output enables you always applying right amount powders on workparts and helps to control film thickness with quality results and great saving of powders.

- KF-X1 offers 3 pre-set standard application programs for flat parts, corners and re-coating demands, use the touch keys to select any of the electrostatic coating processes.

- Allows you to create and store 20 application programs optimized for your parts and powder. Each part can be coated always with its ideal settings.

- A clear and easy to use interface makes it easy for every user to take advantage of these powerful technologies.



COLO-08 Electrostatic Spray Gun

powder spray gun

- 100 kV spray gun maximizes powder charging capacity while complying with safety regulations, delivers highest transfer efficiency during long lasting use, most powders are attracted to the metal parts with less waste.

- Program and powder flow changes are fast and easy too. Just press the “P” button to move between coating modes. and use the handy up and down arrows for adjusting powder flow as you coat.

-COLO patented manual electrostatic spray gun is ergonomically designed to reduce operators' fatigue during long time use.

- Comes with full array of nozzle assortment with different spray patterns to optimize your spray effect.



KF-X1 High Performance Spare Parts

powder coating gun parts

- Equipped with full sizes of nozzle assortments, prepare for spraying various workpieces. Round and flat nozzles are suitable for most common workpieces, extension nozzles for inside powder coating of narrow areas.

- The COLO self-designed powder pump delivers more uniform powder powder flow and takes efficient material utilization Plug-in powder injector can be detached without any tool, allowing fast cleaning and maintenance.

- The anti-static powder hose embedded with carbon strips features anti-static, ensuring constant and uniform flow and features easy to clean during color change process.





Why KF-X1 powder coating system is an excellent model?

1. Pre-set coating programs as well as storable programs are easy for beginners and powerful for experienced users

2. Digital valve controlled provides accurate and subtle regulation of powder feed and atomization, which meets your higher coating requirements

3. Flexible control of all processing parameters(kv, amperage, feed air, dosing air) by digital allows to get optimal mode that avoids Orange Peel or Faraday Cage Effect.

4. All components are proved to be optimal performance, such as 100kv spray gun, grounded hose, smooth flow powder pump, multi-purpose nozzles, etc.

5. Our professional powder coating system makes it easier and quicker for any challenging application jobs.

kf-x1 powder coating system

Specifications

KF-X1 Powder Coating Gun Technical Parameter

Power range

100-240V

Frequency

50/60HZ

Temperature range in use

-10   +50

Gun weight:

500g

Rated output voltage

24VDC

Maximum output voltage

0-100KV (  adjustable)

Maximum powder injection

600g/min

Polarity

negative (-)

Maximum input-air pressure

10kg/cm

Optimum input-air pressure

6kg/cm

Maximum compressed-air consumption

13.2 m3/h
