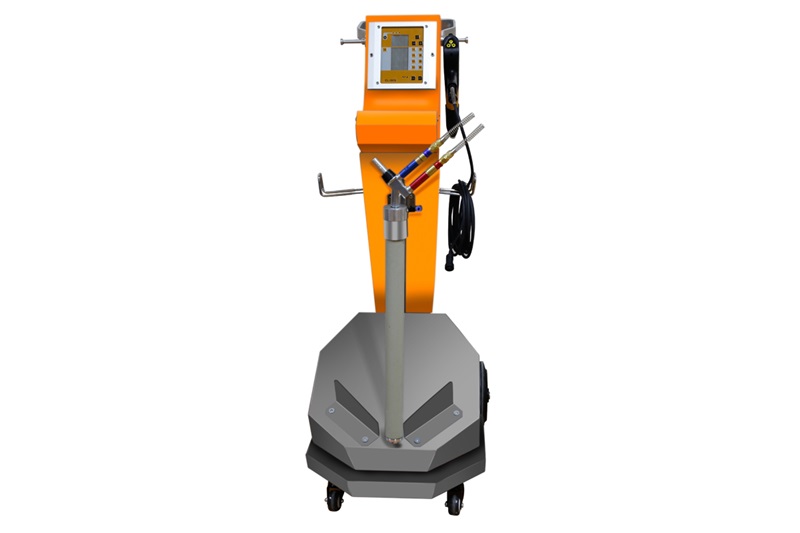

COLO-191S-V Professional Powder Coating Gun Box Feed Unit

The COLO-191S combines digital valve control and 100kv high-voltage static technologies that delivers excellent performance for even most challenging jobs, such as easy penetration into deep corner of complex parts, increased transfer effficiency with metallic powders.

Using our professional powder coating equipment help you get extremely uniform coating film, save powder materials and increase powder coating effciency.

  • Professional Powder Coating Gun
  • Professional Powder Coating equipment

COLO-191S Gun Controller Features

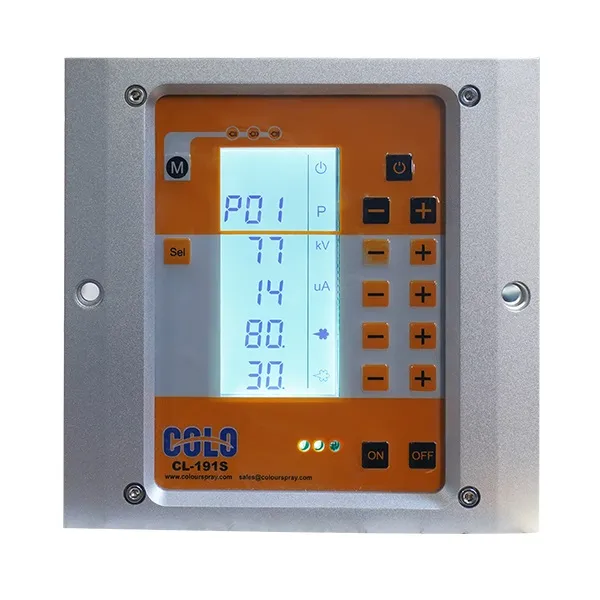

powder coating gun control

1. Digital valve control of air flow technology for better atomization, and the precise adjustment of powder output achieves consistent coating film thickness.

2. 0-100kv voltage adjustable, as well as current adjustable, offers a great flexibility for optimal settings, increase transfer efficiency, overcome faraday cage effect.

3. For most applications, there are 3 standard pre-set programs, including flat-coating, corner-coating, re-coating, easy to use for beginners.

4. Allows to create 20 kinds of personalized programs with optimal kv, current, powder flow, atomizing air, those settings can also be saved as a recipe to be easily called back when needed next time.



COLO-08 Manual Spray Gun Features

powder coating gun

1. COLO patented manual electrostatic spray gun is ergonomically designed to reduce operators' fatigue during long time use.

2. 100kv spray gun maximize the electrostatic charging capacity, provides high transfer efficiency and saves powder materials

3. Rear cover of the spray gun has remote control of changing powder flow and application program with buttons, which is fast and easy during operation.

4. Comes with full array of nozzle assortment to optimize your spray effect, including flat nozzles, round spray nozzles with different size deflectors, extension nozzles help to reach hard-to-reach corners.



Box Feed Unit for Fast Color Change

powder coating gun parts

- It is a box feed type powder coating equipment, the suction tube directly conveying the powder from original powder box to the spray gun, which do not need clean hoppers, suitable for customer who has to frequently change colors.

- Powders are fully fluidized by vibration motor with a high degree of uniformity, more over suction tube unit with fluidizing pad is optimized for a constant powder delivery. The inclined vibration table allows fully emptying of powders.



COLO-191S High Performance Spare Parts

powder coating gun parts

- Equipped with full sizes of nozzle assortments, prepare for spraying various workpieces. Round and flat nozzles are suitable for most common workpieces, extension nozzles for inside powder coating of narrow areas.

- The COLO self-designed powder pump delivers more uniform powder powder flow and takes efficient material utilization Plug-in powder injector can be detached without any tool, allowing fast cleaning and maintenance.

- The anti-static powder hose embedded with carbon strips features anti-static, ensuring constant and uniform flow and features easy to clean during color change process.





Why COLO-191S is a Professional Powder Coating Gun?

The initial feature for professional jobs is the precise adjustment of each parameters, as they are controlled by digital valves, especially for pneumatic parameters, you can always apply right amount of powders for workparts (traditional powder coating gun does not have), and achieve repeatable performance.

From flat panels to profiles, valve covers, furniture to auto parts, the COLO-191S offers outstanding performance to every kinds of metal shapes, from the postitive feedbacks from world customers, it has been a star powder coating equipment of COLO.

  • COLO-191S Operation Guide
  • COLO-191S Customer Feedbacks
Technical Data
Electrical data
Power Range 220V/110V
Frequency 50HZ/60HZ
Temperature range in use -10 ℃+50 ℃
Powder Gun
Gun Weight 500G
Rated output voltage 24VDC
Input Voltage - 200kv
Maximum output current 180Ua(max
Maximum output voltage 0-100KV (adjustable)
Maximum powder injection 600g/min
Polarity negative (-)
Pneumatic Data
Maximum input-air pressure 10kg/cm
Optimum input-air pressure 6kg/cm
Minimum input-air pressure 4kg/cm
Maximum oil vapor content of compressed air 1.4g/N m3
Maximum compressed-air consumption 13.2 m3/h
