Description

COLO-191ST-B Mini Powder Coating Gun System

Mini powder coating system includes a smart digital controller, a high performance 100kv spray gun, 2lbs small hopper, powder injectors as well as other connections. It is recommended for all kinds of small scale productions or testing jobs.

COLO-191S series powder coating system applies world's latest technology, featuring flexbile to control all data that delivers perfect finish even for most complex workparts.

mini powder coating system

COLO-191S Powder Coating Gun Controller Features

powder coating gun control

1. Powder feeding and atomizing air controlled by digital valve, delivering precise powder output that obviously saving powders.

2. 0-100kv voltage adjustable, as well as current adjustable, offers a great flexibility for setting optimal data to avoids Faraday Cage effect or Orange Peel.

3. Standard 3 pre-set modes of flat-coating, corner-coating, re-coating, easy to use for beginners.

4. Allows users create and store 20 different application programs, each part can be coated ideal with its optimal setting.

5. A clear and easy-to-use interface makes it easy for every user to take advantage of these powerful technologies.

COLO-08 Manual Spray Gun Features

powder coating gun

1. Remote control of changing powder flow and application program on the back cover, fast and easy.

2. COLO patented manual spray gun is ergonomically designed to reduce operators' fatigue during long time use.

3. Built-in 100kv cascade to maximize the electrostatic charging, provides high transfer efficiency and saves materials

4. Comes with full array of nozzle assortment to optimize your spray effect, including flat nozzles, round spray nozzles with different size deflectors, extension nozzles.

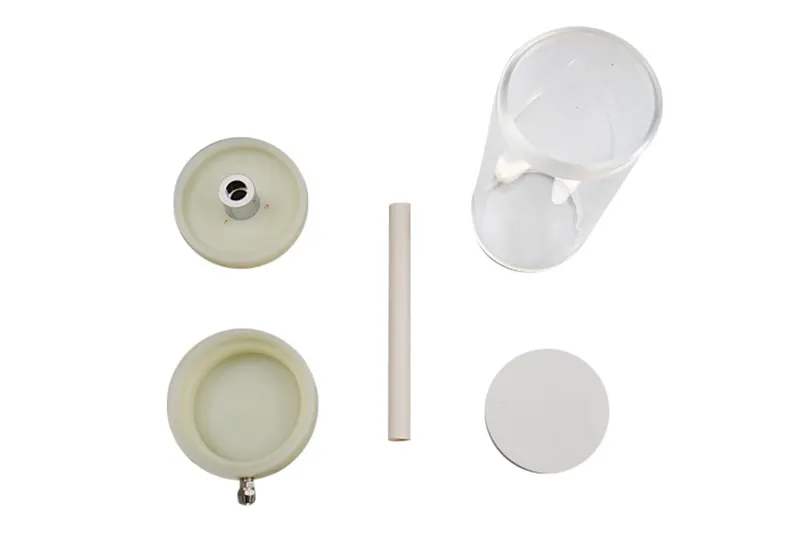

2lbs Powder Fluidizing Cup

powder coating hopper

Size: D10xH20cm, Powder Capacity:20lbs

Recommended for mini production, hobby or home use, or powder manufacturer testing job, etc.

Fluidizing based powder hopper ensures constant and smooth powder flow for better finish quality.

Easy to disassemble without any tools, quick for cleaning and color change.





Why Choose COLO-191S Series Powder Coating Gun?

The initial feature is the precise adjustment of each parameters, as they are controlled by digital valves, especially for pneumatic parameters, you can always apply right amount of powders for workparts (traditional powder coating gun does not have), the second is the independent control of kv and amperage (most can only adjust kv), which help you overcome faraday cage effect.

From flat panels to profiles, valve covers, furniture products and auto parts, the COLO-191S offers outstanding performance to every kinds of metal shapes, from the postitive feedbacks from world customers, it has been a star powder coating equipment of COLO.

Technical Data
Electrical data
Power Range 220V/110V
Frequency 50HZ/60HZ
Temperature range in use -10 ℃+50 ℃
Powder Gun
Gun Weight 500G
Rated output voltage 24VDC
Input Voltage - 200kv
Maximum output current 180Ua(max
Maximum output voltage 0-100KV (adjustable)
Maximum powder injection 600g/min
Polarity negative (-)
Pneumatic Data
Maximum input-air pressure 10kg/cm
Optimum input-air pressure 6kg/cm
Minimum input-air pressure 4kg/cm
Maximum oil vapor content of compressed air 1.4g/N m3
Maximum compressed-air consumption 13.2 m3/h
