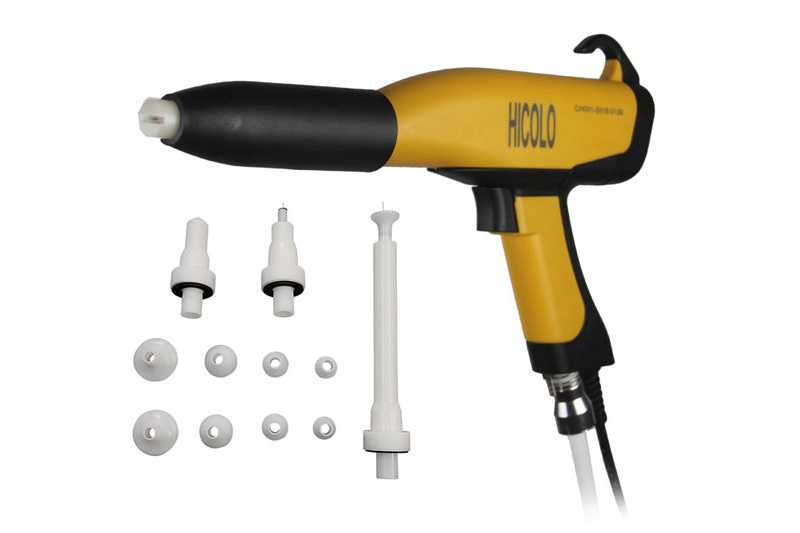

COLO-660T-08C Mini Powder Coating Cup Gun

The mini powder coating gun with 1 lbs powder cup, is ideal for powder testing, lab education or mini parts application. small dimension system is easy to carry and costs less. Mini fluidizing cup ensures continuous and smooth powder conveying, which is fast to clean during color change.

The COLO-660 Series model applies the easiest spray method that delivers stable and high quality finishing. The easy-structured powder coating machine requires simplest operation and minimal maintenance.

powder coating cup gun

COLO-660 Powder Gun Control Features

Designed with 4 preset application programs

Flat parts program: is ideal for coating panels and flat parts

Complex parts program: is designed for the coating of three dimensional parts, such as profiles.

Recoat program: is optimized for the re-coating of parts which have already been coated.

Pulse progam is for maximizing the effect when comes with Faraday Cage areas, significantly reducing powder amount.

COLO-08 Manual Electrostatic Spray Gun Features

1. 100 kV spray gun maximizes powder charging capacity while complying with safety regulations, most powders are attracted to the metal parts with less waste.

2. Lightweight and ergonomic design reduces operator's fatigue after long time use.

3. Full assembly of nozzles help you handle different coating jobs with ease, including flat nozzles, round nozzles, as well as extension nozzles for easier penetration.

Specifications

Powder Gun
Rated output voltage	24VDC
Cascade input voltage	12V
Maximum output current	180Ua(max)
Maximum output voltage	0-100KV ( adjustable)
Maximum powder injection	600g/min
Polarity	Polarity
Gun weight	500G
Electrical Data
Power range	220V/110V
Frequency	50HZ /60HZ
Temperature range in use	-10 ℃+50 ℃
Pneumatic Data
Maximum input-air pressure	10kg/cm2
Maximum input-air pressure	6kg/cm2
Minimum input-air pressure	4kg/cm2
Maximum water vapor content or compressed air	1.4g/N m3
Maximum oil vapor content of compressed air	0.1ppm
