Batch Powder Coating Gas Oven with Trolley System

Our gas powder coating batch oven has enough space to hold big batches of workparts, which is recommended to use natural gas, LPG or diesel as heating source as those ovens could quickly get to required temperature and cost less energy expense. It is designed with a confustion chamber on the top to save floor space, and a set of trolley system for easily loading workparts.

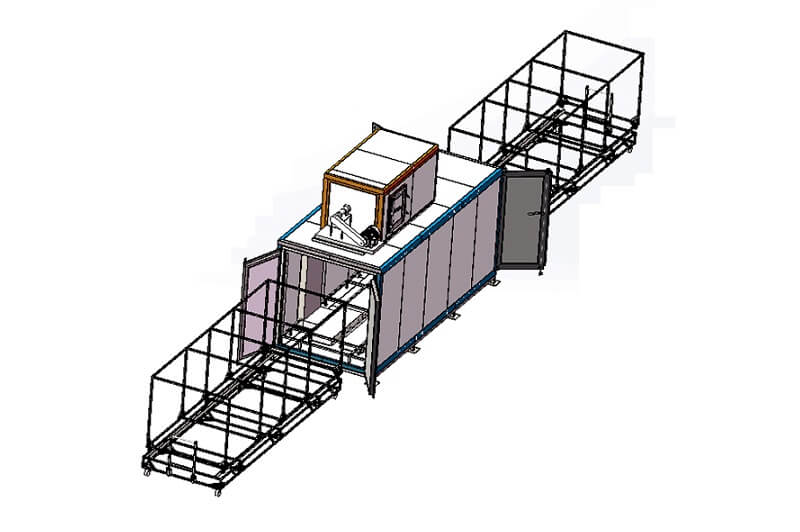

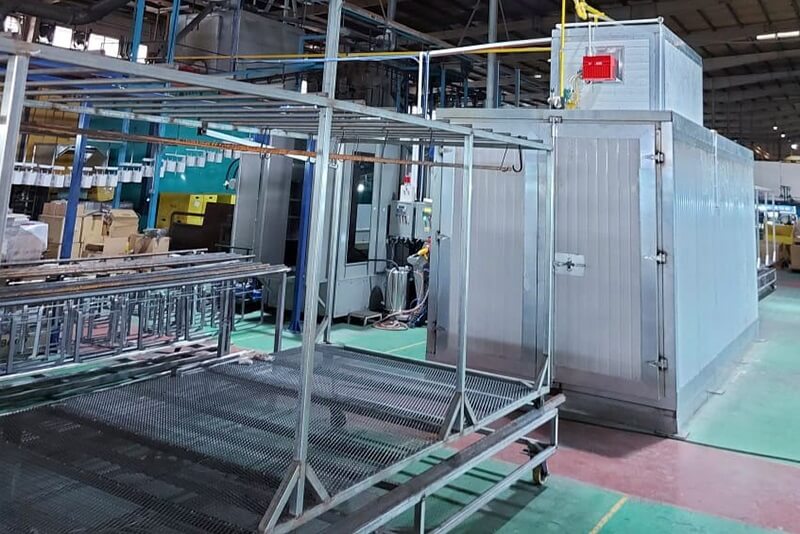

COLO powder coating oven trolley system is standardly configured with a loading frame participating in external curing proce and a carriadge for outside transportion. This system allows carrying a big batch of workparts, and saves your efforts to operate especially for heavy elements Trolley system can be designed accoriding to your workparts as well as maximize the utilization of oven space.

Gas Powder Coating Oven Components

Thick insulation 100mm
The Powder Coating Oven insulation materials 100mm thickness rock wool with heat-resistent galvanized innerwall and durable color steel outwall. High temperature will maintain until the end of the cycle.

Simple PLC Control
PLC Control provides high precision heating process, it offers all the features you need. The LED display allows you to set the temperature, as well as the duration of heating process at the desired temperature.

RIELLO Burner
Using maintenance-free RIELLO gas burner fully burning of fuels, quickly reaches to required temperature and  Gas heating source features more environmental-friendly than diesel heating, and more cost-saving than electric heating.

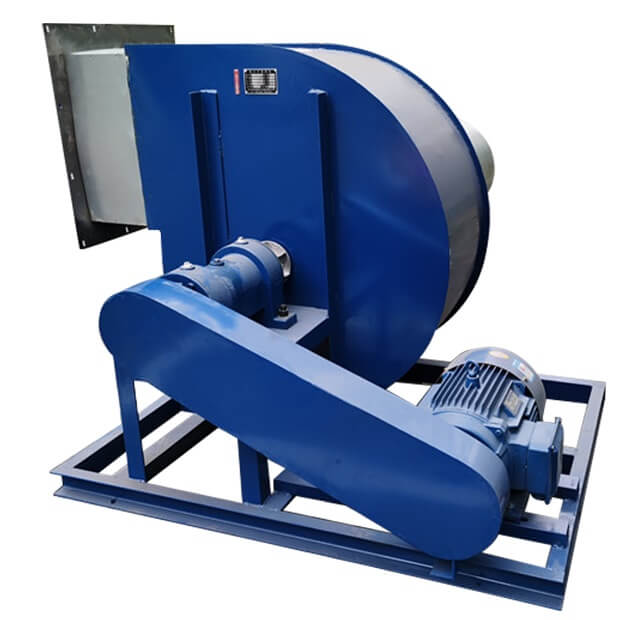

Air Circulation Fan
We can boast a very good temperature uniformity result, our research has shown that the uniformity of air temperature in the furnace of our circuit does not exceed ±3°C! The result is due to our technology of horizontal and vertical air circulation with the circulation fan.

Batch Type Gas Powder Coating Oven Applications

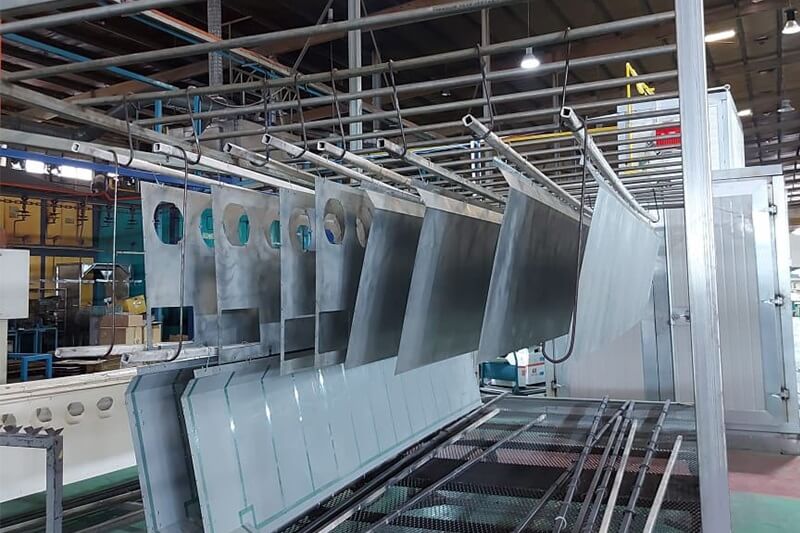

This powder coating plant consists of manual powder coating machine, pass thru type spray booth and gas curing oven with trolley, ideal for application of long length workparts, such as metal plates, frames, profiles, and requires batch production with saving budget

20ft Gas Powder Coating Oven Specifications

We supply standard modes of powder coating oven with lower cost, also provide custom services, oven sizes and configurations can be designed as your precise requirements.

Why choose COLO powder coating ovens?

1. Our powder coating ovens are designed specially for powder coating, no pollution for parts and environment.

2. We use advanced heating technology that gets the air to temperature faster – which saves you times every day. It uses less fuel, which saves on your operating costs.

3. Our walls are built panels filled with 100mm mineral wool insulation, which helps keep the heat in the powder coating oven and out of your work area.

4. The entire design is built to create optimal airflow throughout the powder coating oven enclosure, preventing hot spots and providing an even, constant cure for your parts.

5. We offere custom designs and sizes of powder coating ovens as you required.
