Alloy Wheel Powder Coating Equipment Package
Email: services@colourspray.com
Whatsapp: 8618958052290
-副本.jpg)
Alloy Wheel Powder Coating Equipment Package
Including powder coating gun, powder spray booth and curing oven, this manual powder coating equipment package is an affordable and simple solution for batch processing of alloy wheels. COLO equipment create smooth, uniform and durable finish of wheel surfaces.

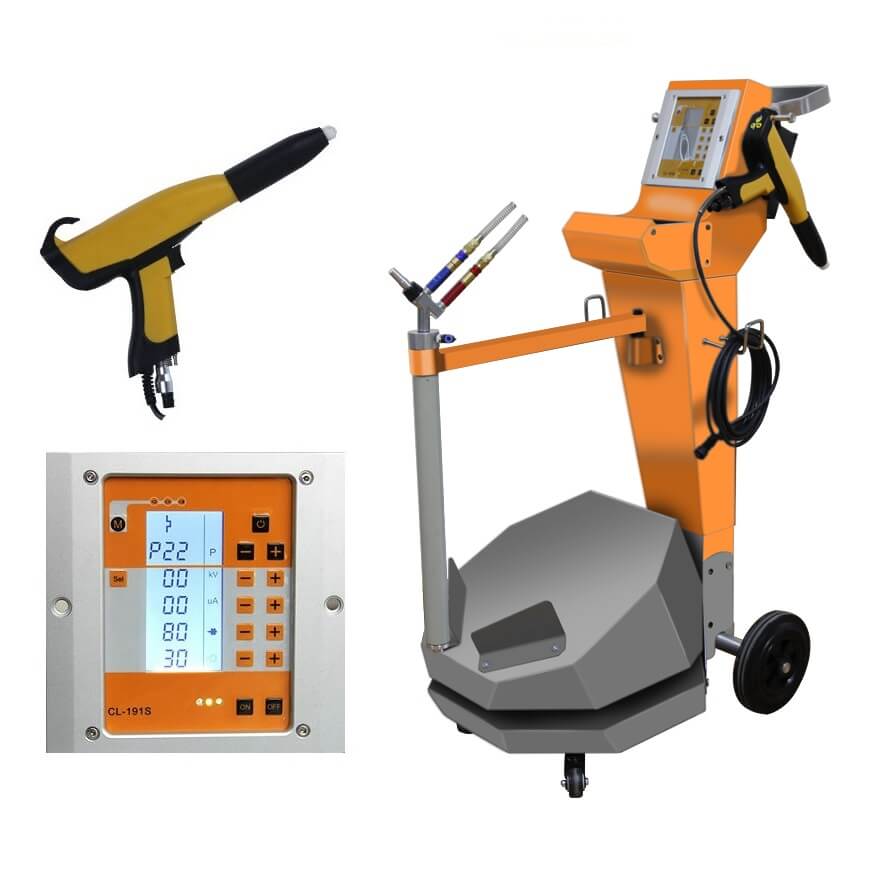

COLO-191S Powder Coating Spray Gun
COLO-191S offers more efficient operations with advanced DVC technology and 100kv powerful spray gun, leads to easy penetration of corners and great save of powders, meets the challenge to coat even most complex parts
Features
1. Precise setting of all crucial parapters, kv, current, powder output, atomizing air, achieves more efficient coating and repeatable performance.
2. Offers 3 pre-set standard application programs for flat parts, profiles and re-coating .It is very simple to operate for a beginners.
3. Allows advanced users to create and store personalized application programs optimal for their parts and powders. Up to 20 coating programes can be stored in the control unit.
4. A clear and easy to use LCD interface facilitate every user to take advantage ofthese powerful technologies.
5. Box feed type allows fast color change.
| Power Range | 220V/110V |
| Frequency | 50HZ/60HZ |
| Temperature range in use | -10 ℃+50 ℃ |
| Gun Weight | 500G |
| Rated output voltage | 24VDC |
| Input Voltage | - 200kv |
| Maximum output current | 180Ua(max) |
| Maximum output voltage | 0-100KV (adjustable) |
| Maximum powder injection | 600g/min |
| Polarity | negative (-) |
COLO-2315 Powder Coating Booth
The COLO-1517 powder booth with filter cartirdge collection unit, creates a dustless working environment, suitable for batch production of small to medium sized parts. Based on COLO technology, It is an universal and economic powder recovery system.
Features
1. Comes with 3 pcs of cartridge filters and 2.2kw extraction fan powerfully capture oversprayed powders, reach to 98% powder recycle rate
2. Automatic pulse filter cleaning prevents programmed via PLC prevents the accumulation of the powder and extend filter's life.
3. Quick-release type cartridge filters are designed for quick color change demands.
4. Durable Powder-coated steel structure ensure long service life.
5. Overhead lighting and rail systems makes the powder coating job easier and better.
| Operation Szie | Width2300 * Depth1500 * Height1500mm |
| Overall Size | Width2750 * Depth2070 * Height2180mm |
| Power Supply | 220V/380V/425V (can be customized) |
| Frequency | 50-60 HZ |
| Power Consumption | 4 KW |
| Air Comsumption | 6677-13353m3/h |
| Filters | Polyester |
| Filter Count | 4 pcs, (325*900mm) |
| Filter Cleaning System | pneumatic |
| Machine Weight | 400kg |
| Warranty | 12 months |
COLO-1864 Electric Powder Coating Oven
Our curing ovens are designed specially for powder coating, When a thermoset powder is exposed to required temperature, it begins to melt, flows out, and then chemically reacts to form a higher molecular weight polymer in a network-like structure.
Features
1. Electric heating source powder coating oven, environmetal friendly and easy operated
2. Rapidly raise to the required temperature, save your time every day.
3. Uniform heat distribution in inner chamber thanks to circulation fan and optimal airflow.
4. 100mm thickness rock wool board of the interlayer, keep long time heat preservation.
5. PLC panel controls the working of fan, sets the time and temperature, provides a precise and reliable heating process.
| Worksize dimensions(mm) | 1600 width x 1800 height x 1400 depth |
| Overall dimensions(mm) | 1900 width x 2200 height x 1700 depth |
| Power supply | Electric/ 12kw |
| Voltage/Frequency | 380V/220v(50-60hz) |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max. | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.75kw |
| Circulation/ Air flow | Vertical ,Variable through holes on the walls |
| Transportation | Trolley |
| Warranty | 12 months |
*Size and special requirements can be customized based on actual powder coating products.
